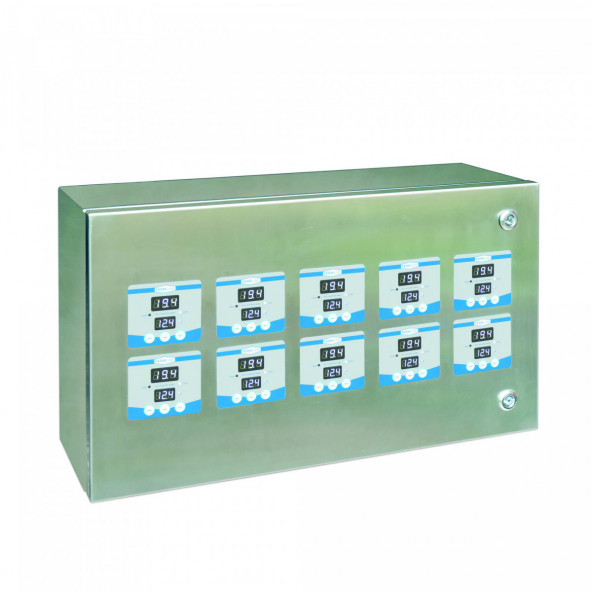

The elegant stainless-steel control cabinet FermFlex-Box serves
to control tanks temperature, automatically, from a central point.
The double-display of measured (is-temperature) and settemperature
of all tanks.
- Over-all control at a glance
- Settings can be adjusted from a central place
Specifications:
- Central control cabinet available in three sizes - for up to
10, 20 or 30 tanks
- One pre-installed controller per tank
- Stainless steel casing
- Simple and clear operation
- Informative display with high contrast LED lighting for
distance sighting. Simultaneous display of the measured
and the set-temperatures, control-mode and the activity
- Temperature indication from -9.9 to +99.9°C, suitable for
measuring high temperature processes such as pasteurization,
beer mashing, sugar syrup for CSD etc.
- Two integrated collective relays for pump control: one for
heating and one for cooling
- Integrated safety backup for data protection during
electric power-out
- With PC data interface for control over Ferm-Software
- Can be locked by code – a single controller or the whole
installation at once
- Integration into the bus system VinInfo possible
| FermFlex-Box |
|
| Temperature range |
from -9.9 to +99.9°C
(from 14,2 to 211,8°F) |
| Output |
24V AC / 2,5A |
| Regulation structure |
2-point (heating or cooling)
3-point (heating and cooling) |
| Operation modes |
Cooling / Heating / Cooling & Heating / Display / Off |
| Power supply |
230V /1Ph / 50-60Hz |
| Protection type |
IP 55 |
| Dimensions: W x D x H |
FermFlex-Box (10): 600 x 210 x 350 mm
FermFlex-Box (20): 600 x 210 x 500 mm
FermFlex-Box (30): 600 x 210 x 700 mm |
| Weight |
FermFlex-Box (10): 20 kg
FermFlex-Box (20): 28 kg
FermFlex-Box (30): 40 kg |
