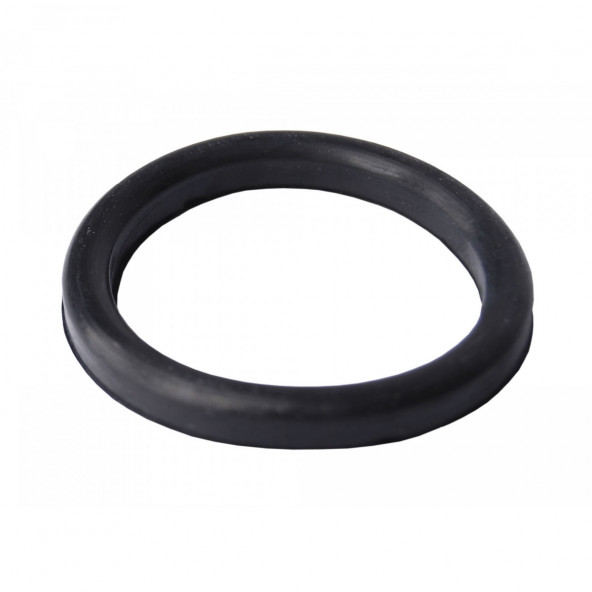

EPDM gasket for union DIN 32

EPDM gasket for union DIN 32

check_circle Item nr.: 018.210.32 - In stock
€0,92
per unit
mail Notify me when in stock

EPDM gasket without collar for standard DIN 11851 couplings, suitable for use in the food industry. Can be steam sterilised.

  • Food-safe EPDM
  • Dimensions according to DIN 11851
  • Wide temperature range: -45°C – +150°C
  • Working pressure: 40 bar (DN10 – DN40); 25 bar (DN50-DN65)
  • Food safety certificate available

Description - EPDM gasket for union DIN 32

EPDM gasket without collar for standard DIN 11851 couplings, suitable for use in the food industry. Can be steam sterilised. Available in DN10 – DN65. See the table for the dimensions.

  • Food-safe EPDM
  • Dimensions according to DIN 11851
  • Wide temperature range: -45°C – +150°C
  • Working pressure: 40 bar (DN10 – DN40); 25 bar (DN50-DN65)
  • Food safety certificate available


DN 10 15 20 25 32 40 50 60 65
A 20 26 33 40 46 52 64 71 81
C 12 18 23 30 36 42 54 61 71
S 4 4 4 5 5 5 5 5 5
R 2.3 2.3 2.8 2.8 2.8 2.8 2.8 2.8 2.8
PN 40 40 40 40 40 40 25 25 25
arrow_downward Show more

Specifications

Data sheet

Type of equipment
Hoses & Couplings

Dimensions (incl. Packaging)

Width
10.20 cm
Height
0.50 cm
Length
11.30 cm
Weight
0.01 kg
